和德尼科_Hydrotechnik应用案例_MS 5060_轮式铲车_柴油消耗量检测系统


项目应用,技术要求和配置

Application „Fuel Consumption“/ 应用-检测油耗

MS 5060 together with two ORM flow meters in Komatsu Wheel Loader

MS 506手持仪表配2个ORM流量计,测量KOMATUS品牌轮式铲车

Diesel consumption is measured with two ORM flow meters type QO 100 F 160-11-12.11; 0.06 – 1,0 l/min (+/- 1 %)

由两个ORM流量传感器QO100 F 160-11-12.11; 0.06 – 1,0 l/min (+/- 1 %) (量程)

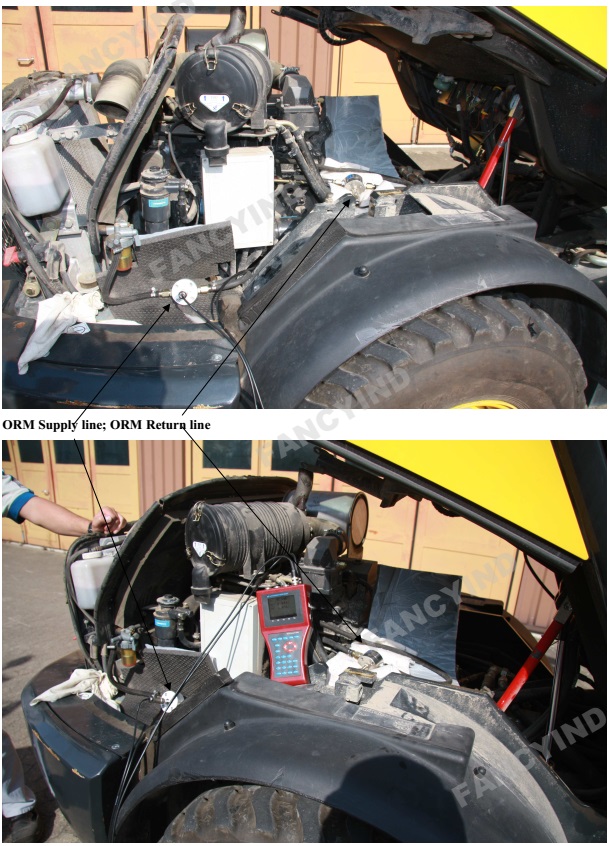

First ORM installed in supply line between Diesel pump and motor.

第一个传感器安装于柴油泵和发动机之间的供油管路上。

Second ORM installed in return line to tank.

第二个传感器安装于油箱的循环回路上。

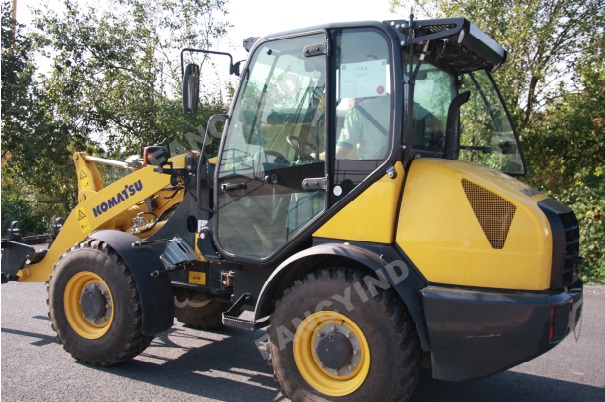

Diesel consumption carried out on small Komatsu Wheel Loader

测试Komatus品牌小型轮式装卸车的的柴油油耗.

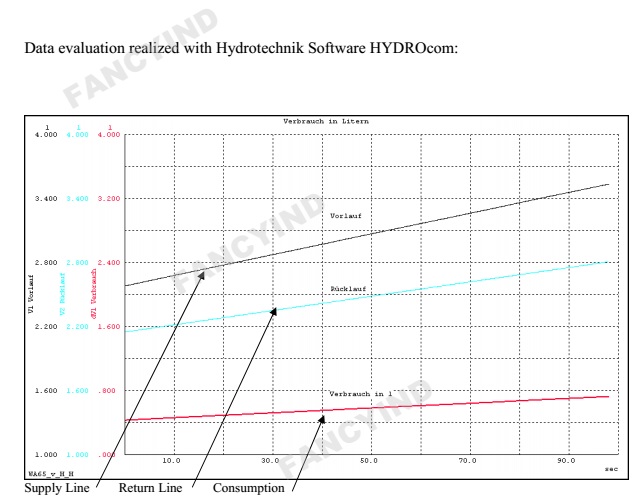

MS 5060 measures data of supply and return line displaying the difference of consumed litres: dV = V1 (Supply Line) – V2 (Return Line).

采用MS 5060测量两组供油管路的流量数据,他们之间的数据差值就是油耗:V1 (供油管路) – V2 (循环返回管路).



Immediate display of Diesel consumption in litre.

可实时显示消耗的柴油量(用升作为单位)

优势
Benefits:

Efficient and economic method of Diesel consumption measurement and recording.

最有效率的在线监测和数据记录有关柴油消耗量的方式。

Furthermore Hydrotechnik MS5060 can be used for the detection of pressure, oil flow, temperature, current, voltage, torque and CANbus signals

采用MS506具有良好的扩展性和接口,如果未来扩展测试项目例如压力,流量,电流,电压,力矩或者输出CANBUS数据协议等等都是很方便的。
