Hydrotechnik_液压系统_应用案例_MS5060_拖拉机性能测试平台


MS5060 Hattat-Valtra

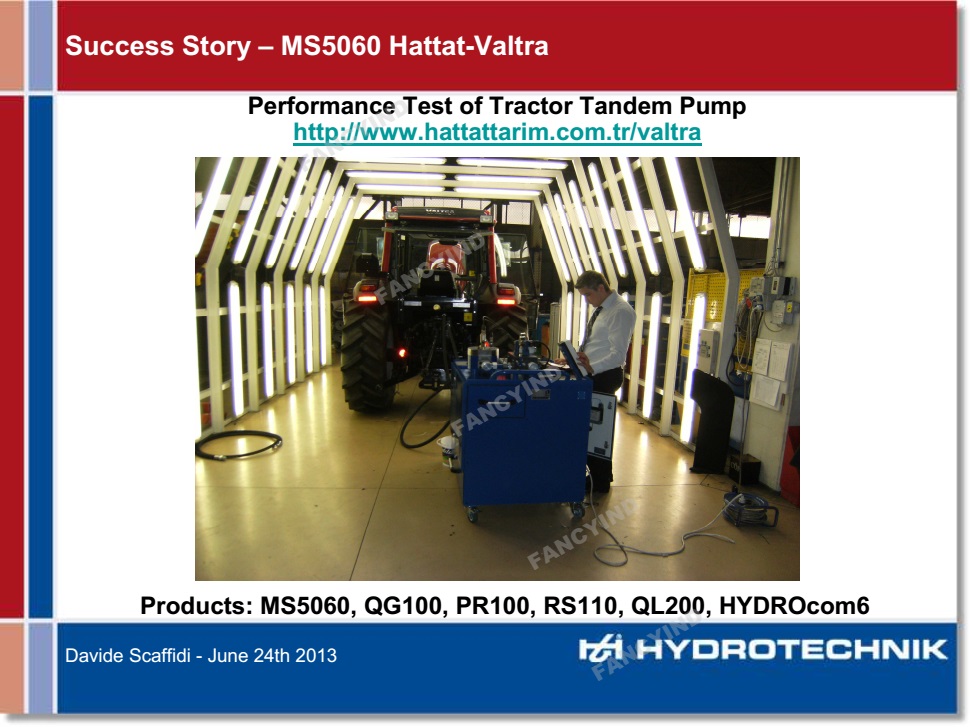

Performance Test of Tractor Tandem Pump / 拖拉机牵引车的性能测试平台

Products/ 产品配置: MS5060, QG100, PR100, RS110, QL200, HYDROcom6

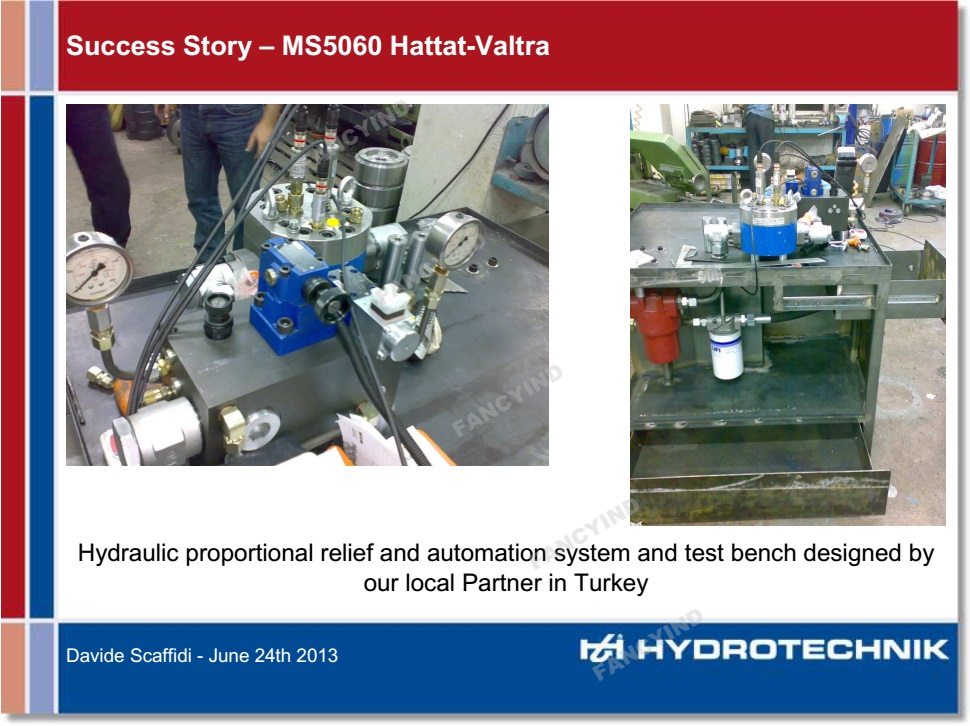

Hydraulic proportional relief and automation system and test bench designed by our local Partner in Turkey

我们土耳其的当地的合作伙伴设计了这套液压自动比利时泄压系统和测试平台

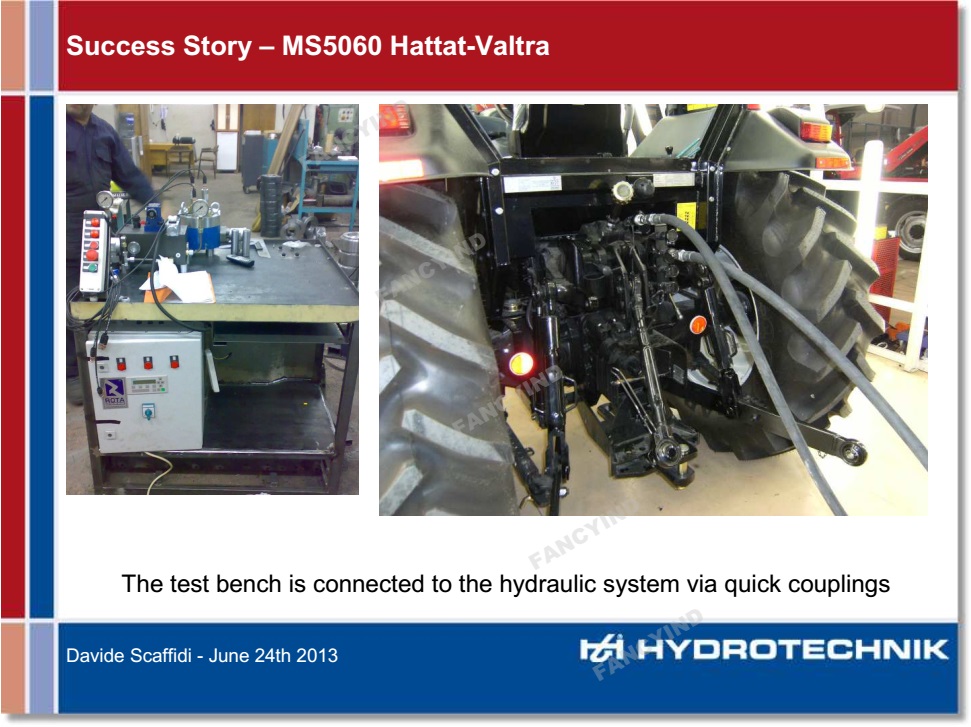

The test bench is connected to the hydraulic system via quick couplings

测试平台的液压系统配备了快速接头

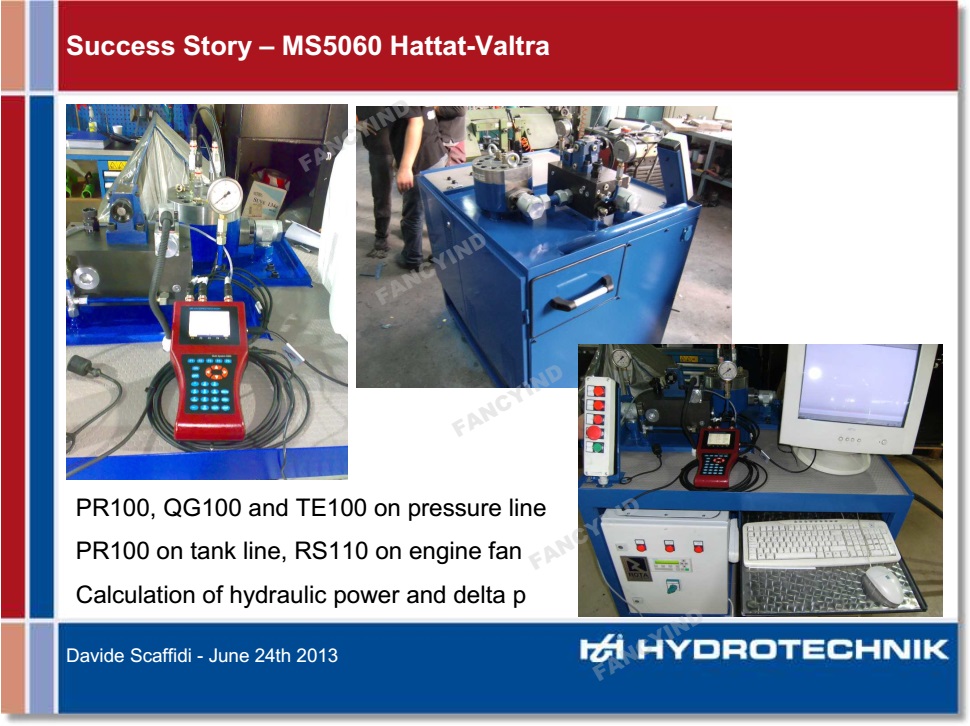

PR100, QG100 and TE100 on pressure line PR100 on tank line, RS110 on engine fan Calculation of hydraulic power and delta p

PR100,QG100和TE100安装于供油管路,PR100安装于循环回路,RS110用于监测发动机风扇转速;所有传感器配合可以监测液压功率和压力差

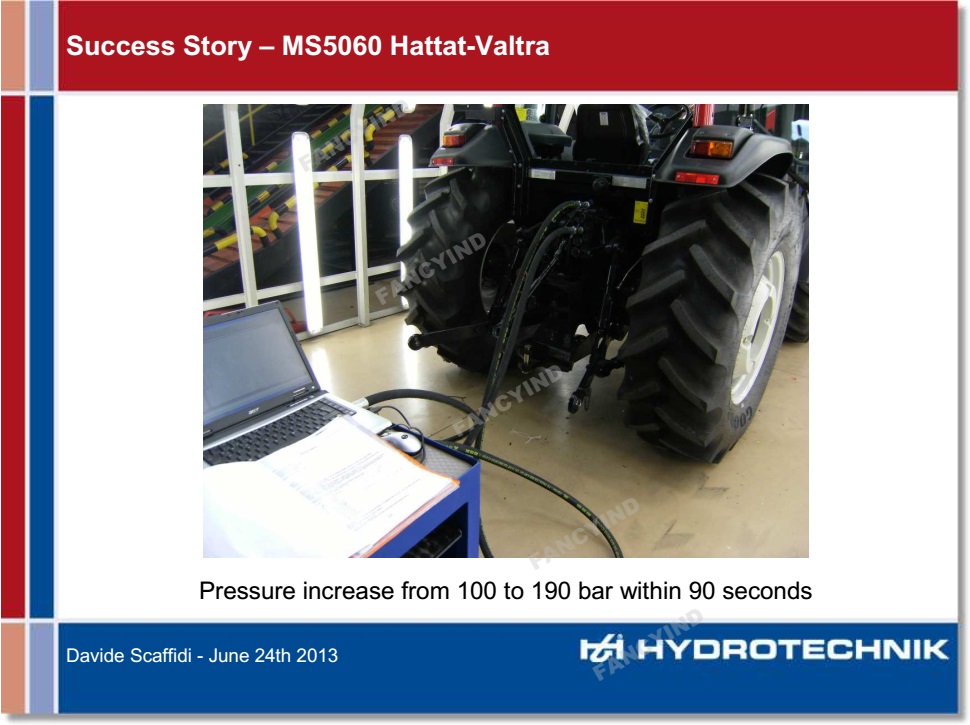

Pressure increase from 100 to 190 bar within 90 seconds

压力在90秒时间内从100bar上升至190bar

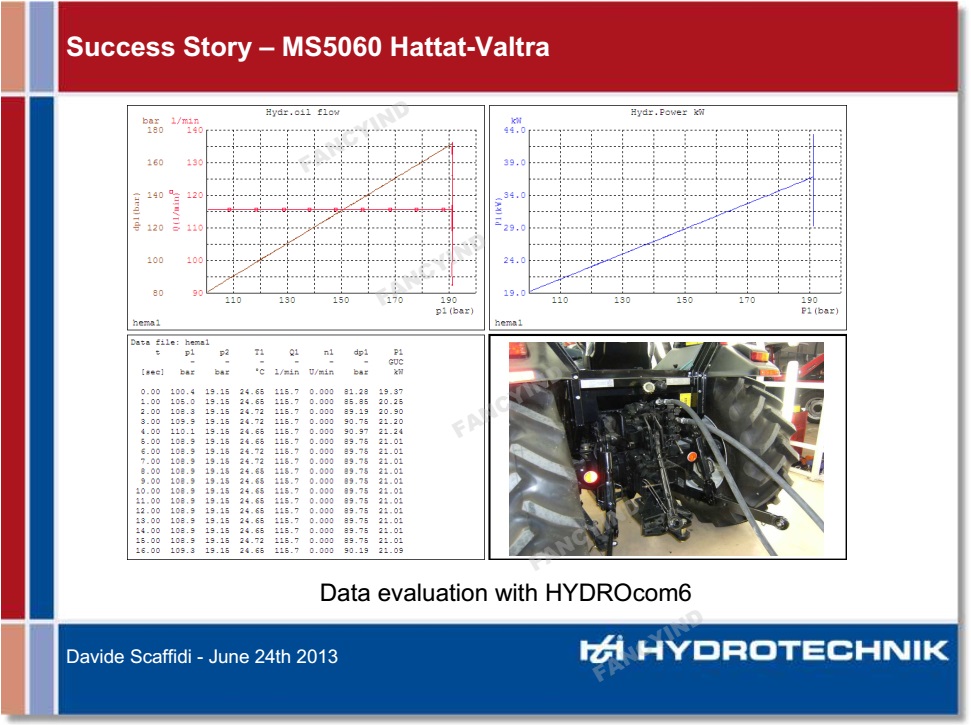

Data evaluation with HYDROcom6

使用测评软件HYDROcom6来计算压差
